HYDROPLEX^TM MULTIPLEXED ON-BOARD NETWORK

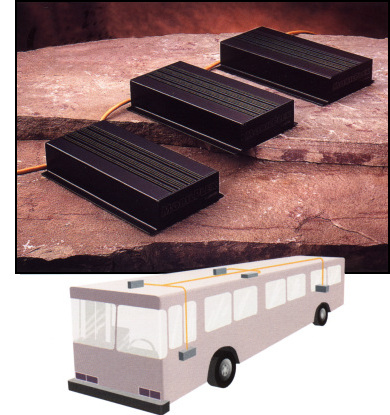

Hydroplex^TM is the answer to increasing vehicle electrical system complexities. Modular and user programmable, Hydroplex^TM eliminates complex wiring harnesses and replaces them with four wires: two for data, two for power. A series of nodes are strategically located throughout the vehicle, communicating on a high-speed network. The nodes connect directly to sensors, switches, and loads. No need for relays, fuses or circuit breakers. Hydroplex^TM can handle continuous loads of 10 Amps with full current limiting and short-circuit protection built-in.  Hydroplex^TM features these solutions to challenging vehicle systems:  Inputs - high resolution, analog, digital, and frequency Outputs - analog PWM for soft-start and proportional control  as well as discrete (on-off) Compatibility - CAN standard, others optional Load Sentry™ - constant continuity checker Diagnostics - on-board for easy troubleshooting Flexibility - various node configurations for optimum network  design
	Hydroplex^TM offers manufacturers  increased flexibility along with reduced  system costs overall, while operators realize  higher reliability and less maintenance.

HYDROPLEX^TM MODULES FEATURES CHART
Features/Modules	Zone Module	I/O Module	Input Module	Indicator Module	Display Module
Dual Purpose Inputs (Analog/Digital)	8	2	-	-	-
High-Resolution Dual Purpose Inputs	8	-	-	-	-
Frequency Inputs	3	1	-	-	-
Discrete (On/Off) Inputs	38	8	28	-	-
Power Outputs	10	4	-	-	-
PWM (Analog) Power Outputs	7	4	-	-	-
Ultra-Bright LED's	-	-	-	24	-
Blue LED's	-	-	-	1	-
LCD Display	-	-	-	-	1
Main Multiplexed CAN Bus	1	1	1	1	1
Auxiliary Service Bus	1	1	-	-	-

A complete network can be built without a Zone Module relying principally on I/O Modules.
The Zone Module is designed to replace a number of I/O Modules, typically 3 or 4, where applicable.
